-Log in to the Monitoring Portal
https://portal.agmonitoring.com/stagesdealer/

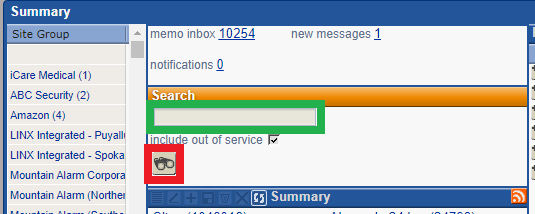

- Enter the account number in the 'Search' box.
-Click the binocular icon to search.
- Double click on the account number.

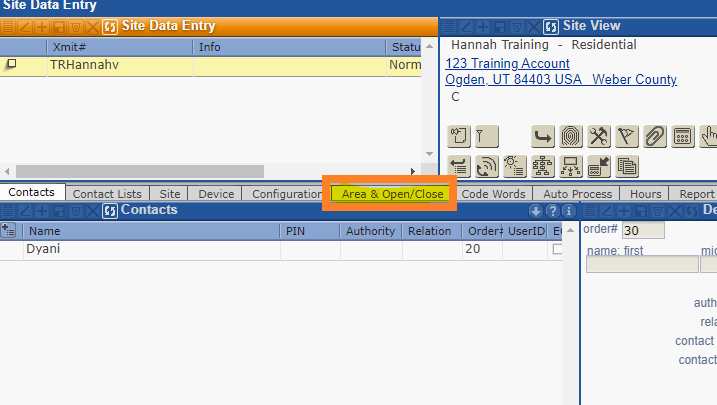

- Then go to the Area & Open/Close tab.
- Create the Open (event code 05702) and Close (event code 05752) events and the schedule number that you will be creating the schedule for.
- If this step is skipped, operators will not be able to access the hours in the Operator View when acting on accounts.

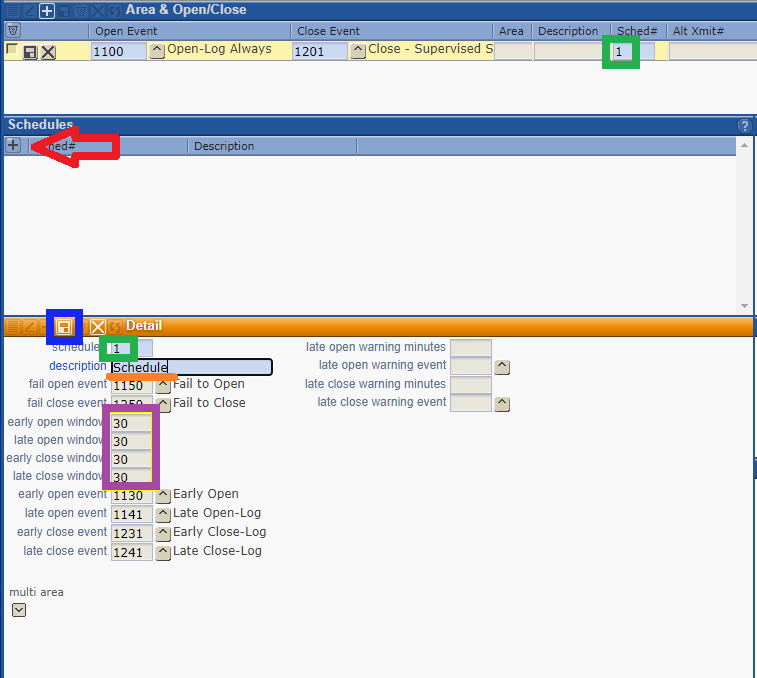

- Hit the plus button under the Schedules section to generate the Detail tab for the setup of the schedule.
- Be sure to ask the dealer if they would like the signals to be called on or logged.
- Confirm any window times are needed. (Window times give the subscriber a certain amount of time in minutes to open or close before generating the event).
- Be sure to match the schedule number to the one you created in before, and its description.
- Adjust the necessary event codes according to what calls your customer wants
Event codes
Calls WILL be made:
Fail to Open 1150
Fail to Code 1250
Early Open 1130
Late Open 1140
Early Close 1230
Late Close 1240
Calls WILL NOT be made:
Fail to Open 1151
Fail to Code 1251
Early Open 1131
Late Open 1141
Early Close 1231
Late Close 1241

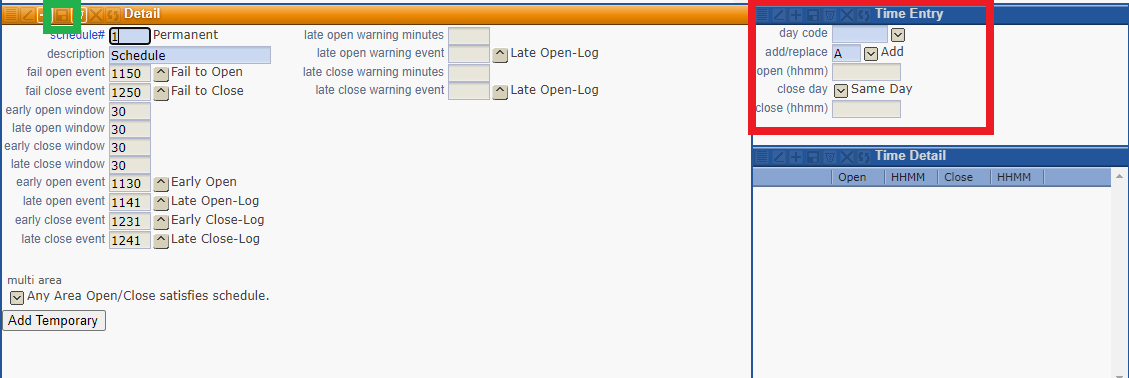

- Once the details have been entered in, click the save icon on the 'Details' tab to generate the time entry.
- Enter in the Days that they need it in effect for as well as the times and save this step.

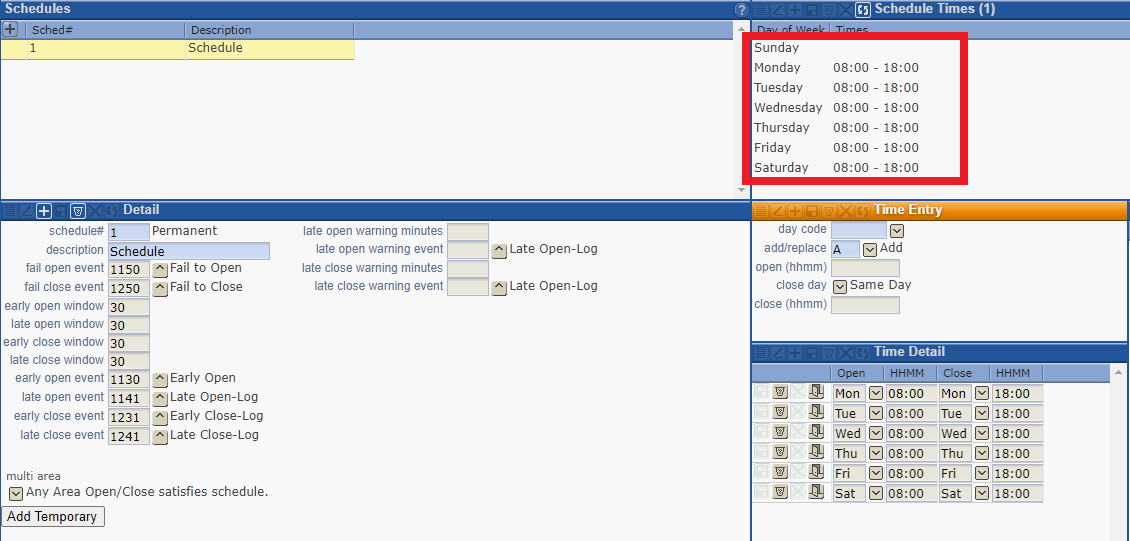

- The times appear in the Schedule Time box above the Time Entry.
